Just a minute: why do large and heavy ships not sink?

How Archimedes’ principle and hydrostatic pressure explain why massive vessels float, and why gravity is both the cause of sinking and floating

KJ Runia, BSc (Hons) MInstP AMIMA

Holds a Bachelor of Science (Honours) degree in Mathematics and Physics from the School of Mathematics and Statistics and the School of Physical Sciences at The Open University, Walton Hall, Milton Keynes in the United Kingdom. Studies currently for an MPhys (Master of Physics). Is a Member of the Institute of Physics (IOP) and an Associate Member of the Institute of Mathematics and its Applications (IMA).

Until they do due to a mistake, ships do not sink, not even the large and heavy ones. Textbooks occasionally explain this in terms of dissimilar densities. While density is a convenient parameter, it is not the fundamental physical cause. While ships sink to the bottom of the ocean due to gravity, they also float thanks to gravity.

When a vessel is launched into the water, it sinks slightly beneath the surface until hydrostatic equilibrium is reached. Because water and the submerged hull cannot occupy the same volume simultaneously, the submerged portion of the hull displaces an identical volume of water. This displacement causes a slight rise in the surrounding water level, though in large bodies of water the change is imperceptible.

Despite being imperceptible, gravity exerts a downward force on every cubic centimetre of the elevated water column. Through hydrostatic pressure, this displaced water pushes back against the submerged hull. The weight of the displaced water equals the net upward force exerted on the vessel. This balance of forces is known as Archimedes’ principle.

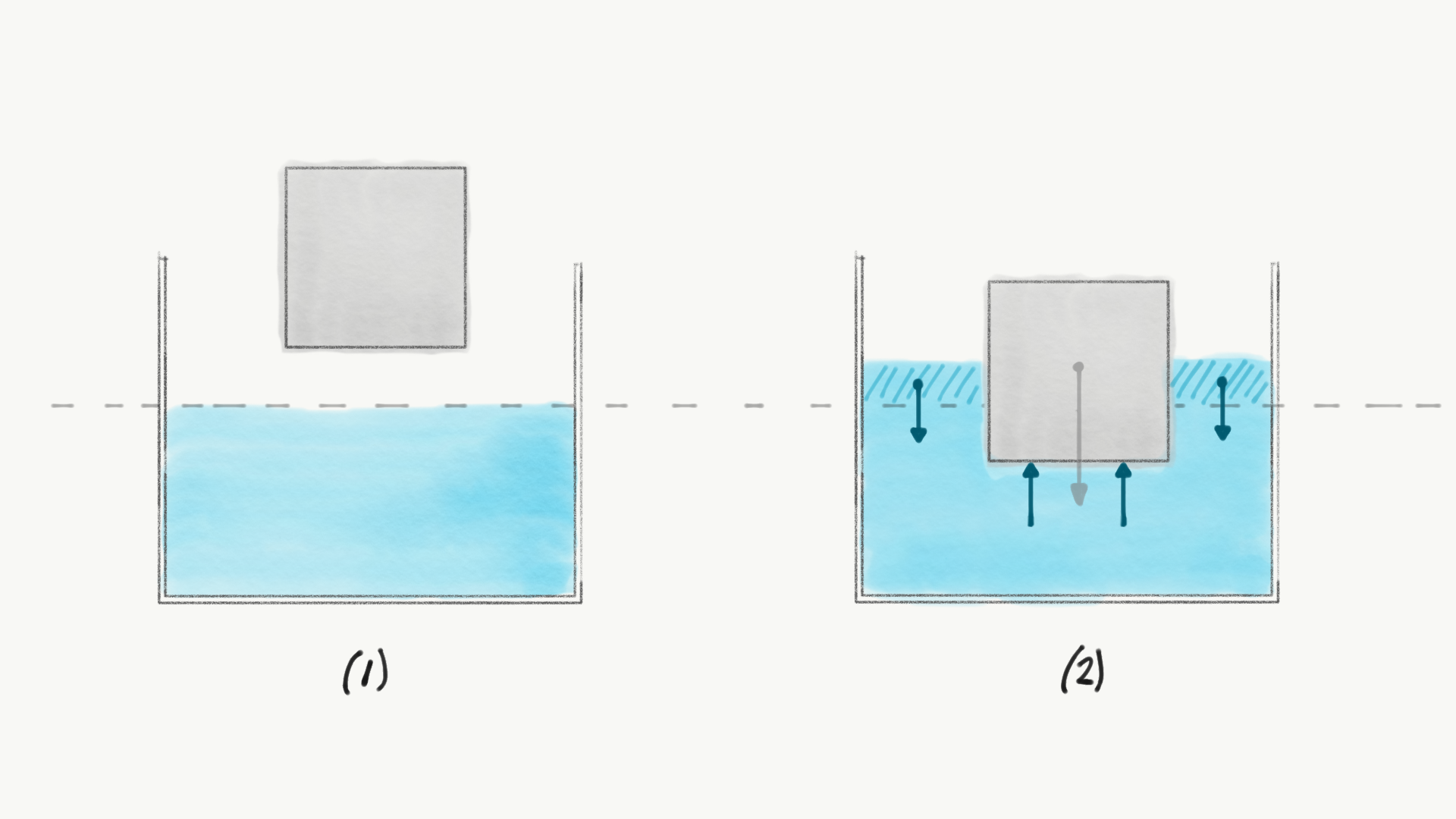

Figure 1: Hydrostatic balance of a floating mass displacing a volume of water.

While the vessel pushes down on the water because of gravity, the surrounding water pushes back through pressure—also driven by gravity (Figure 1). As long as the upward buoyant force produced by the displaced water equals the total weight of the ship, the ship floats. Lateral water pressures act against the submerged sides equally in opposing directions, cancelling each other out completely.

Naval architecture exploits this balance: hulls are shaped so that their submerged volume displaces a quantity of water whose total mass equals that of the entire vessel. The ratio of total mass to total enclosed volume determines the effective density of the ship. While density explains everyday observations like oil floating on water on Earth, density alone does not create buoyancy without a gravitational field.

Aboard the International Space Station, where effective gravity is absent, lower-density oil and higher-density water do not separate into layers: without a gravitational pressure gradient, buoyancy ceases to function.

---

Image credits and references

• Featured image: Teak deck of a cruising yacht via Pixabay (CC0 Public Domain).
• Buoyancy and displacement schematics by KJ Runia.
