What is a spacetime interval?
Einstein and collaborators taught us that space and time are not fixed, immutable quantities. They stretch, dilate, and contract depending on relative motion. There is one quantity, however, that remains strictly invariant across all inertial reference frames: the spacetime interval.
Spatial interval

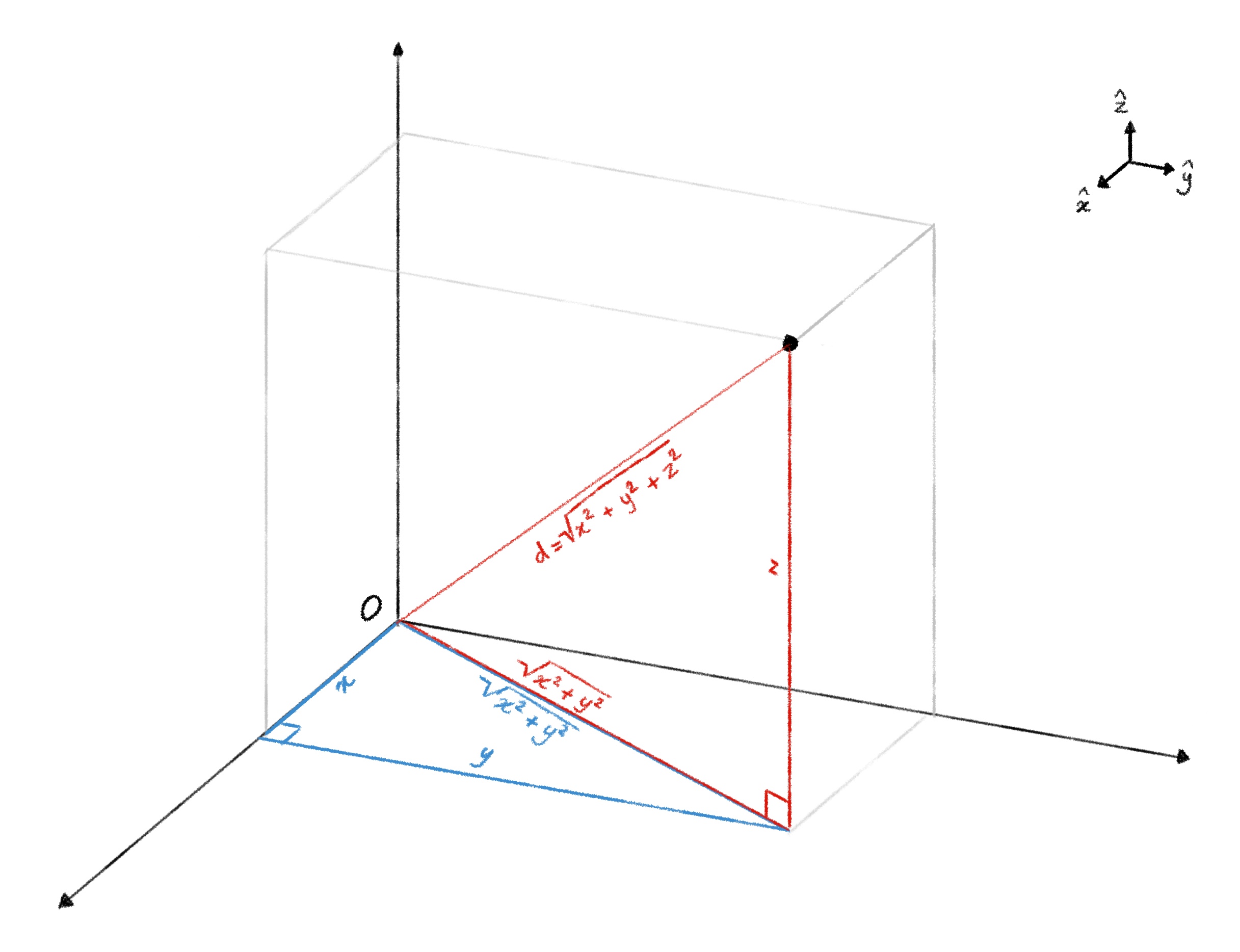

Suppose a photon is emitted from the origin \(O\) and travels to point \(F\) in three-dimensional space (Figure 1). We write down the expression for its squared distance \(d(O,F)^2\) using the Pythagorean theorem:
\[d(O,F)^2 = d(O,A)^2 + d(A,B)^2 + d(B,F)^2.\]
Defining the coordinates of the origin as \(O = (0,0,0)\) and the destination as \(F = (x, y, z)\), this spatial separation becomes:
\[ d(O,F)^2 = (\Delta x)^2 + (\Delta y)^2 + (\Delta z)^2 \tag{1}\]
Because the coordinate axes in Figure 1 represent standard Euclidean space, \(d(O,F)^2\) is called a Euclidean or spatial interval. Geometrically, it represents the space diagonal of a rectangular cuboid bounding that region of 3D space.
In everyday life, specifying a location in space requires three spatial coordinates—for instance, 1 Einstein Drive, 2nd floor. But to specify an event completely, we need one additional piece of information: when does it happen?
Time interval

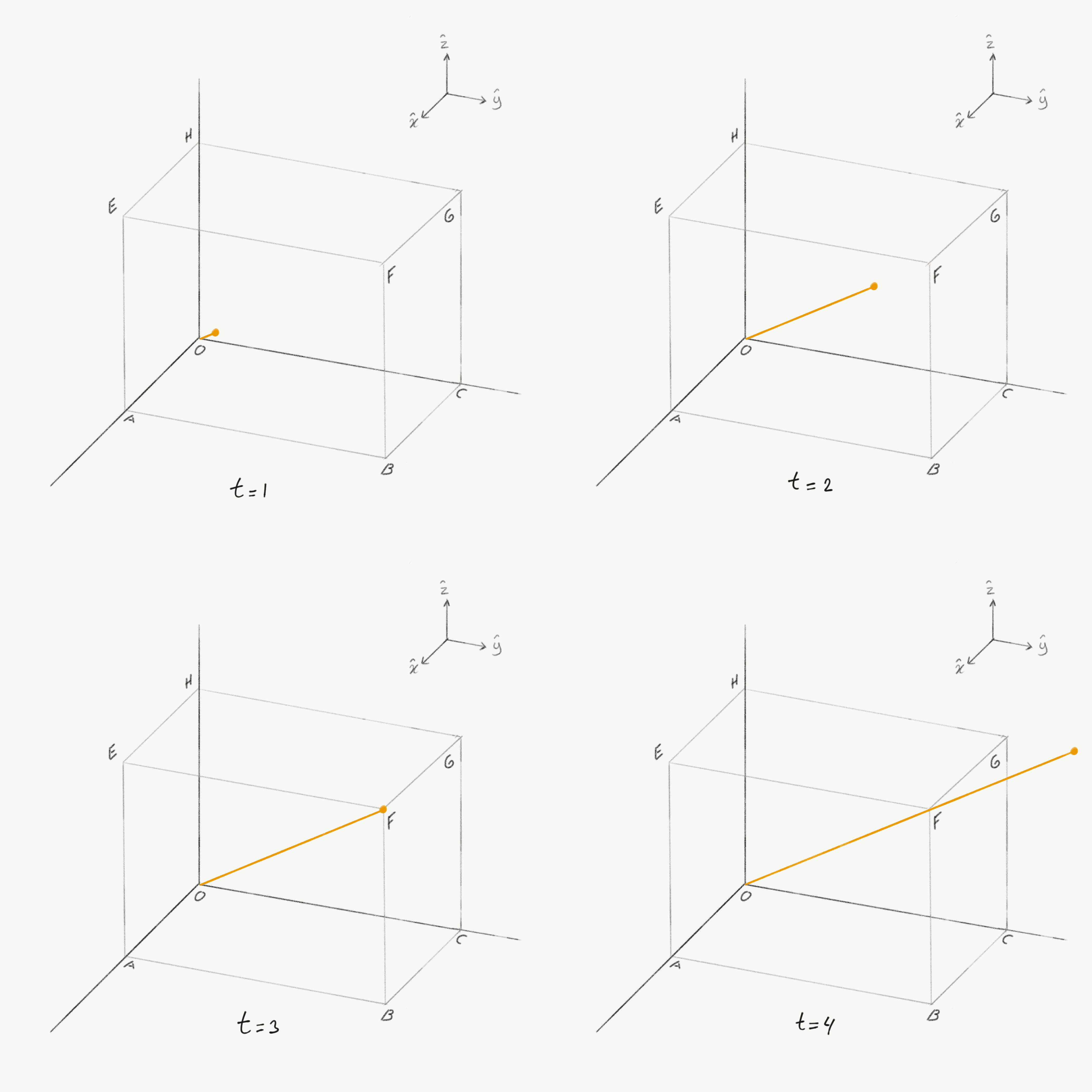

Consider Figure 2, which illustrates our photon’s progress toward point \(F\) across successive moments in time. It demonstrates that physical reality requires not just three spatial coordinates, but also a temporal coordinate.
Suppose photon \(P\) passes through point \(F\) at \(t = 3\). The time coordinate for this arrival event is:
\[t_F = 3.\]
Assuming the photon was emitted from the origin at \(t_O = 0\), the elapsed temporal interval between emission and arrival is:
\[\Delta t_{OF} = t_F - t_O = 3 - 0 = 3.\]
Converting time to distance units
To describe an event in physics, four coordinates are required. The three spatial intervals are measured in units of distance (e.g. metres), whereas the temporal interval is measured in units of time (seconds). To make them dimensionally compatible and mathematically comparable, we multiply the time interval by a fundamental physical invariant: the speed of light in vacuum, \(c\).
By Einstein’s second postulate of special relativity, \(c\) is identical in all inertial reference frames. Multiplying time by velocity yields distance units:
\[\Delta t \longmapsto c\Delta t.\]
The spacetime interval

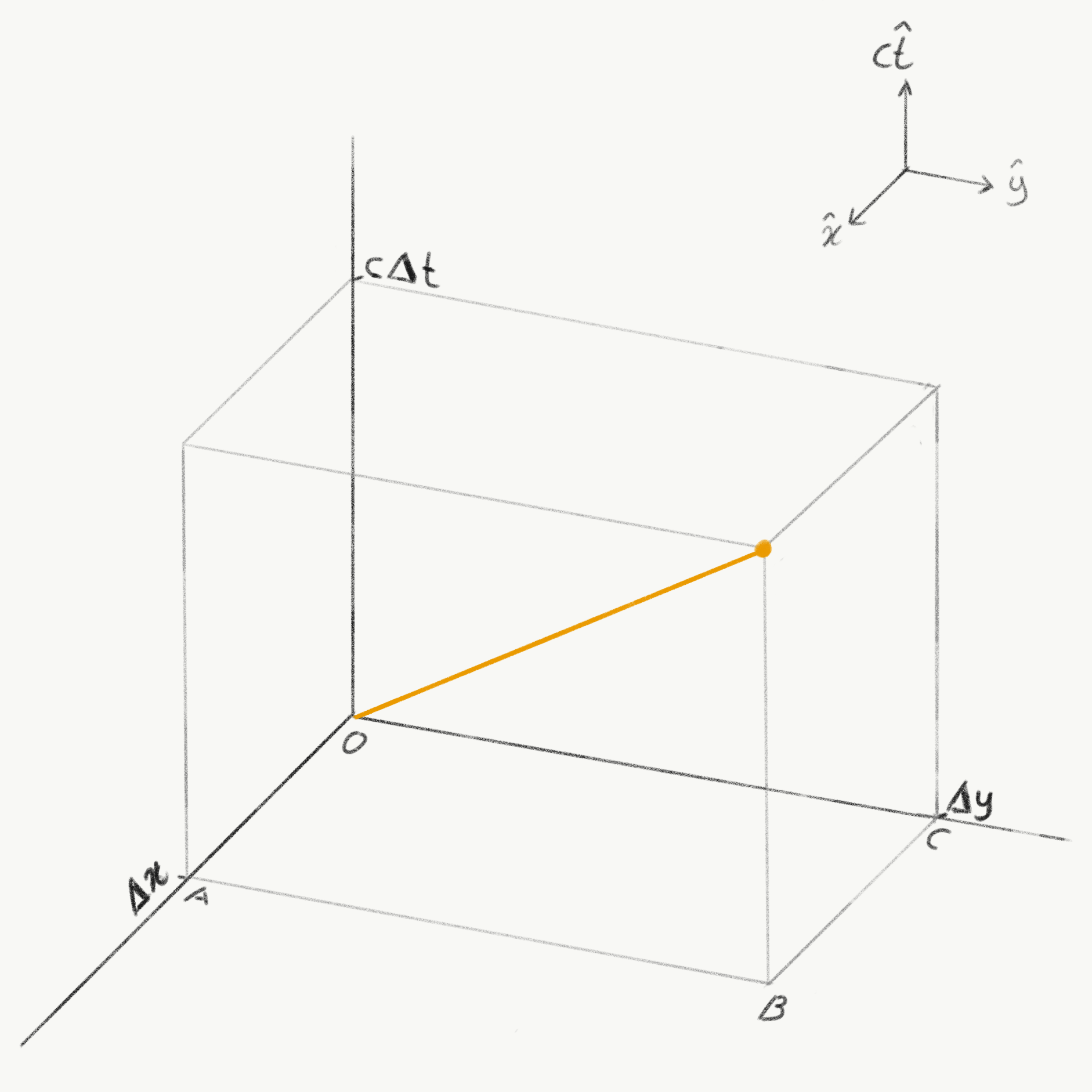

In Figure 3, we represent this four-dimensional geometry on a two-dimensional surface by omitting the spatial \(z\)-axis and replacing it with the temporal \(ct\)-axis.
For a photon travelling at velocity \(c\), the distance travelled in time \(\Delta t\) is:
\[d(O,F) = c\Delta t \implies d(O,F)^2 = (c\Delta t)^2.\]
Equating this expression with our Pythagorean spatial distance from Equation 1:
\[(\Delta x)^2 + (\Delta y)^2 + (\Delta z)^2 = (c\Delta t)^2.\]
Rearranging all terms onto one side:
\[ -(c\Delta t)^2 + (\Delta x)^2 + (\Delta y)^2 + (\Delta z)^2 = 0 \tag{2}\]
Whenever an expression in physics sums to zero, it points toward an underlying symmetry or conservation principle. As Emmy Noether proved, continuous symmetries in nature correspond directly to invariant conservation laws.
Under the Lorentz transformations of special relativity, an observer in relative motion measures different values for \(\Delta x\), \(\Delta y\), \(\Delta z\), and \(\Delta t\). Space contracts and time dilates. However, the combination of these variations remains strictly invariant.
This invariant quantity is the spacetime interval, denoted by \((\Delta s)^2\) (where \(s\) stands for spatial separation):
\[(\Delta s)^2 = -(c\Delta t)^2 + (\Delta x)^2 + (\Delta y)^2 + (\Delta z)^2.\]
Depending on convention, textbooks may adopt the opposite sign signature (\(+---\) rather than \(-+++\)). In either convention, the negative sign on the time component distinguishes temporal separation from spatial separation, defining the hyperbolic geometry of Minkowski spacetime.
While observers in different states of motion disagree on distances and elapsed times, all observers agree on the spacetime interval separating events.
